CDT-MOD-2000-Duct Carbon Dioxide Transmitter Manufacturer,Exporter and Supplier from India

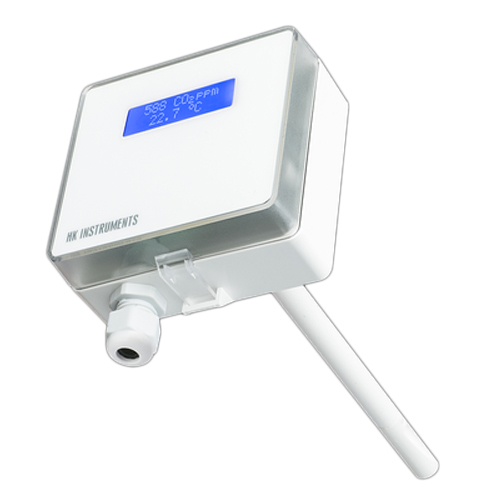

CDT-MOD-2000-Duct Carbon Dioxide Transmitter

Price And Quantity

Unit of Price Piece/Pieces
Minimum Order Quantity 1

Unit of Measure Piece/Pieces
Price 12500.00 INR

Product Specifications

Weight 150 Grams (g)
Usage Measure CO2 & temperature level in duct

Color white
Accuracy CO2: 40 ppm + 2 % of reading %

Voltage 24 VAC or VDC 10 % Volt (v)
Dimension(L*W*H) 99 x 90 x 32 Millimeter (mm)

Power max 230 mA (at 24 V) + 35 mA for each voltage output Milliampere (mA)
Operate Method Electrical

Connection 5-screw terminal block (24 V, GND, CO2, rH, T)
Application CO2 levels of incoming and return air in ventilation system

Material ABS
Function Duct mount CO2 transmitters with temperature for building automation systems

Size 99 x 90 x 32

Product Description

The CDT-MOD-2000-Duct Carbon Dioxide Transmitter detect CO2 concentration and temperature and are both affordable and multifunctional. This device can be mounted in a duct or on a wall. The CDT2000 is the first CO2 measurement instrument with a big touchscreen display that allows for simple setting and modification. The CDT2000 Duct is a low-cost method for detecting total CO2 concentrations in duct systems. The transmitter integrates CO2 concentration, temperature, relative humidity, and VOC readings into a single, simple instrument.

Specification

Measuring Units	ppm and Degree C
Measurement Range	CO2: 400-2000 ppm
Model Name/Number	CDT-MOD-2000-Duct
Display Type	Digital
Brand	HK Instruments Oy
Material	ABS
Operating Temperature	0 ... 50 C
Supply Voltage	24 VAC/VDC +-10 %
Protection Standard	IP54

Trade Information

Main Domestic Market All India
Certifications CE marking: EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU
